3D Polymat Mesh

3D Polymat mesh is a Three-dimensional structure manufactured. From three polypropylene meshes that have been extruded and sub-sequently orientated.

Inquire Now Next Product

3D Polymat Mesh Description 3D Polymat Mesh Applications

3D Polymat Mesh Description

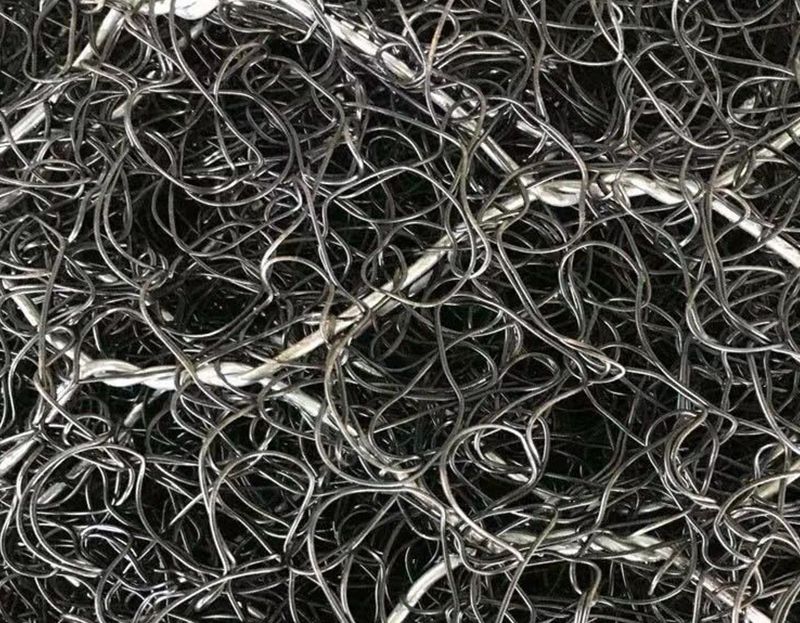

3D Polymat mesh is a Three-dimensional structure manufactured. From three polypropylene meshes that have been extruded and sub-sequently orientated. The mat has a tensile strength of 35 kN/m and a low unit weight which makes it ideally suited for installation on steep slopes.

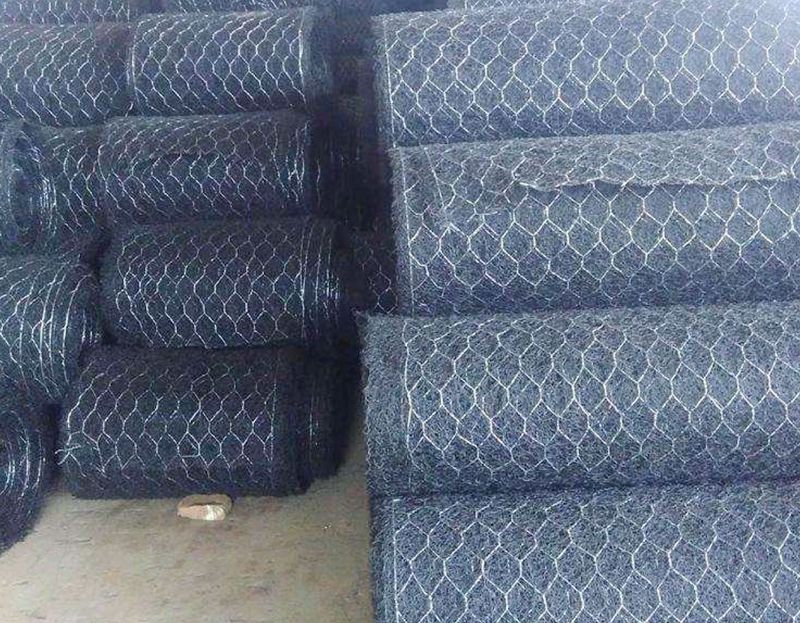

We can supply Polymat ready attached to 25m rolls of rock netting, or separately.

GEOMAT PROPERTIES
polymer	Polypropylen (PP)
Masse per enhet areal(g/㎡)	500	600	500	600
Smeltepunkt(℃)	150
Tetthet（kg/m³）	900
Uv-bestanding	stabilisert
REINFORCEMENT PROPERTIES
Raw material	Hexagonal double twist metal mesh
Protection of metallic wire	complying with requirements
Properties of protection of metallic wire	Class A
Mesh type( mm)	60*80	80*100	60*80	80*100
Wire thickness EN 10218( mm)	2.2	2.5	2.2/3.2	2.5/3.5
PHYSICAL CHARACTERISTICS
Total thickness EN 9863-1( mm)	12mm
Void ratio (%)	90%
Tensile strength MD (Machine Direction)	35kN/m
Elongation at max load MD(%)	5%
Roll dimensions	2M*25M

Other specifications can also be customized processing.

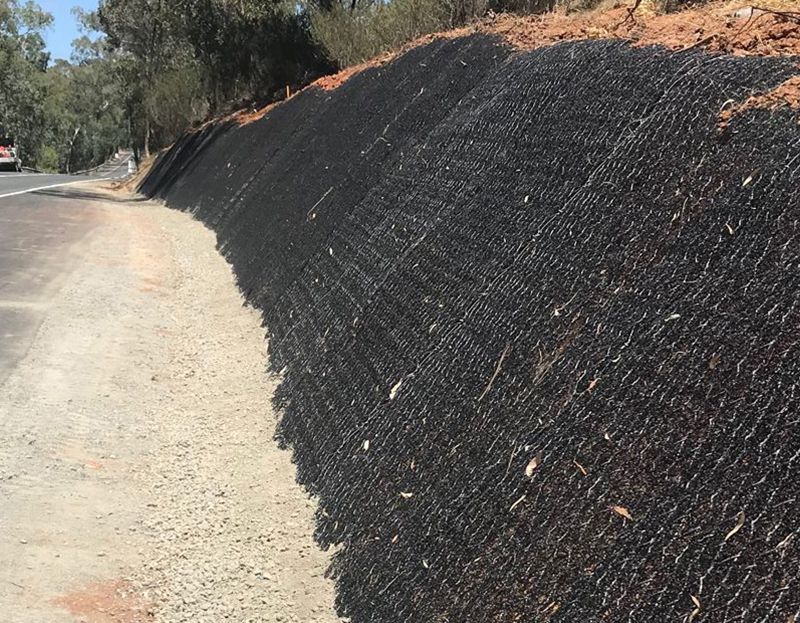

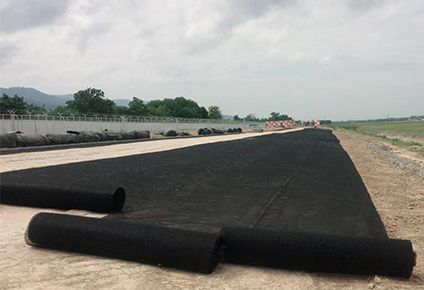

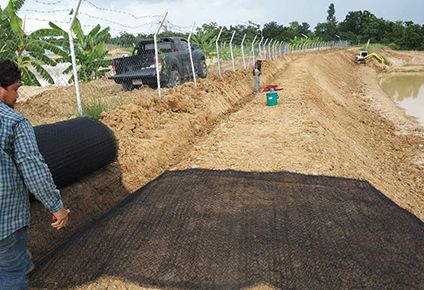

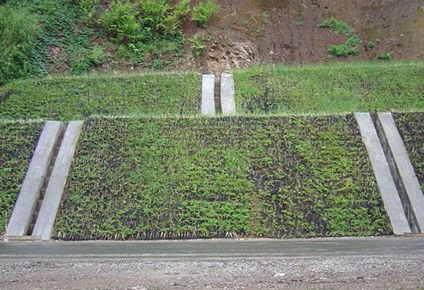

3D Polymat Mesh Applications
