Sack Gabions Description

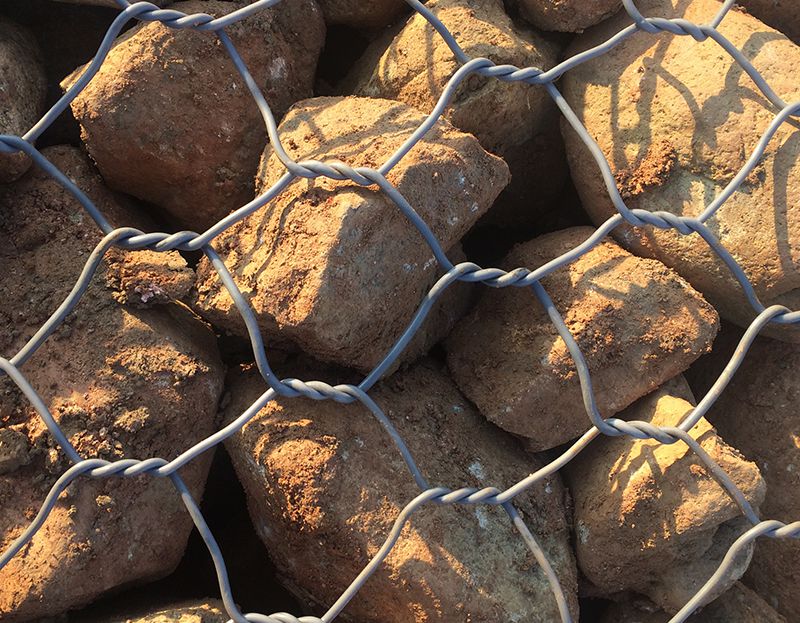

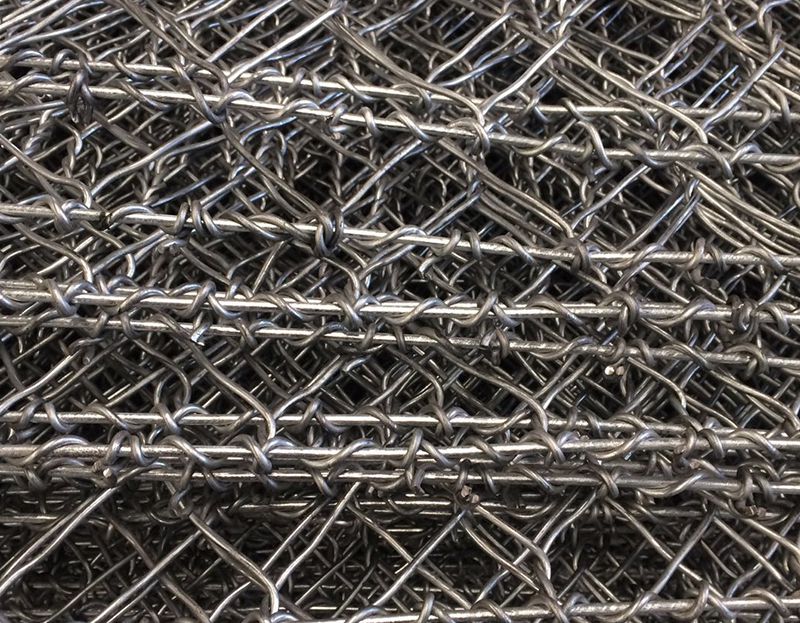

Sack gabions are cylindrical wire mesh baskets constructed of double twisted galvanized steel or galvanized steel with PVC coating. They are pre-assembled in the factory, folded flat and bundled for truck shipping. Lacing wire is shipped separately.

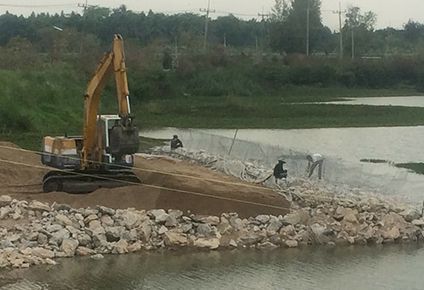

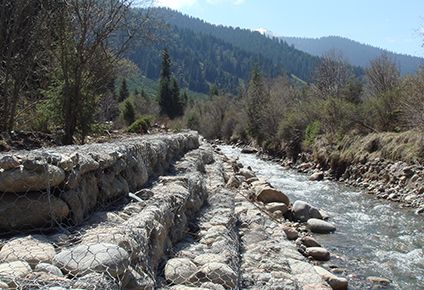

When filled with stones, sack gabions can are used in river control and various emergency applications.
Sack Gabions are shipped with all components connected and ready to erect.
The folded Sack Gabion units shall be taken out from the bundle and placed on a hard flat surface. They shall be opened, unfolded and pressed out to their original shape ready for assembly.
The foundation on which the Sack Gabions are to be placed need not be leveled and graded as Sack Gabions are used for the purposes of providing a firm platform in areas where poor founding conditions exist or in areas where founding occurs in the wet.
Appropriate measures shall be taken for the separation of the foundation layer from the rock-filled Sack Gabion in accordance with the project specifications (geotextile, drain works, etc.). Geotextiles are required to be installed behind or underneath.
|Mesh Sizes（mm）||Gabion dimensions||Material||Wire diameter(mm)|

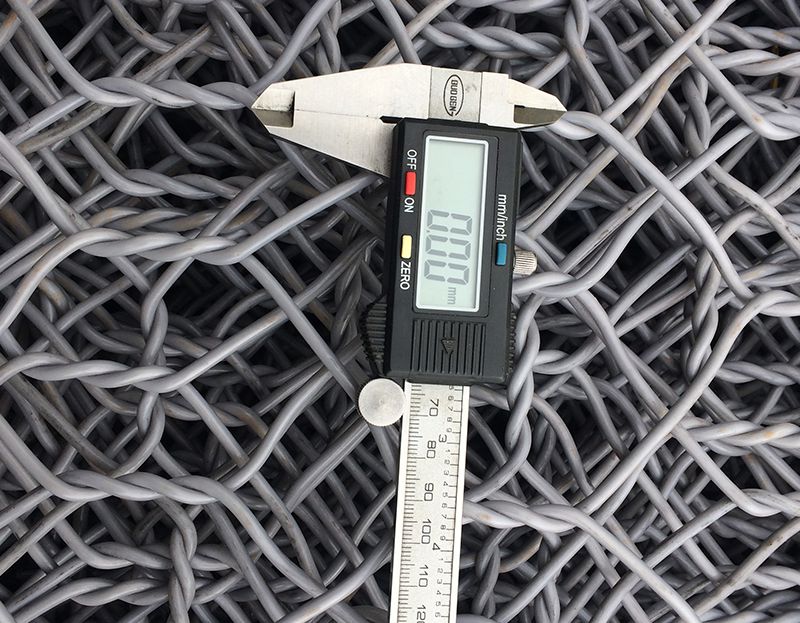

|Length(M)||The diameter of(M)||Hot dipped galvanized, Galfan, Zinc and PVC Coated||Mesh Wire: 2.5mm, 2.7mm, 3.05mm.2.5/3.5mm, 2.7/3.7mm|
selvedge wire: 3.2mm, 3.4mm, 3.8mm3.2/4.2mm, 3.4/4.4mm

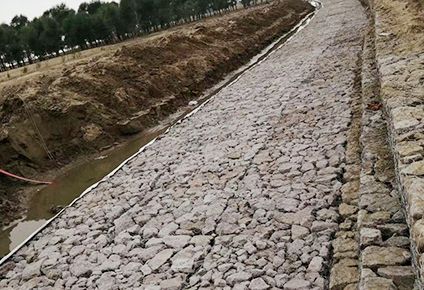

Sack Gabions Applications
Fences and wires.
Retaining walls and soil reinforcement.
Soil stabilization and pavement.
