3D GeoMat
3D GeoMat
3D GeoMat

3D GeoMat

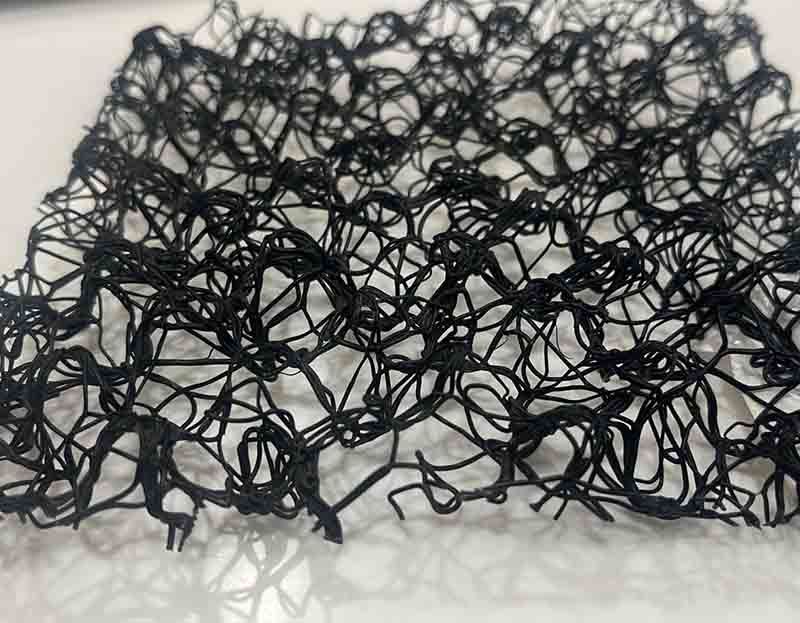

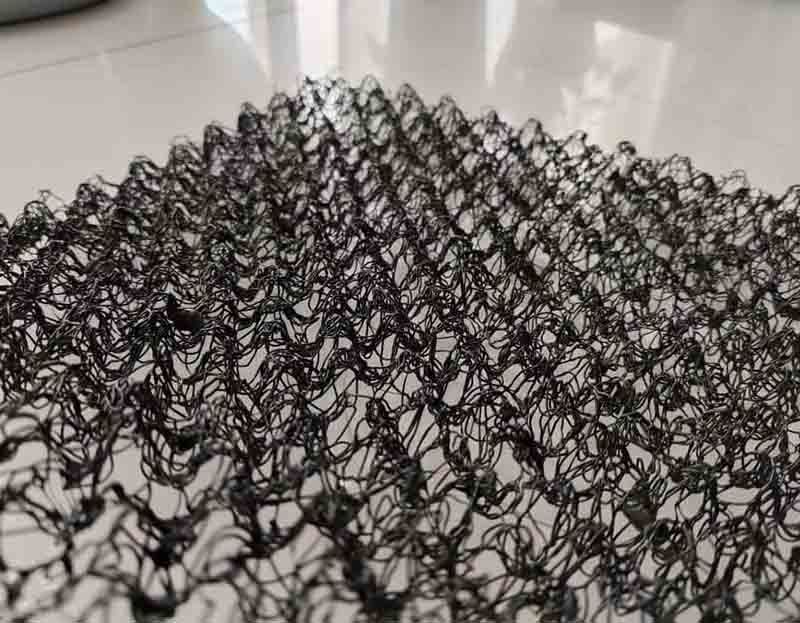

3D GEOMAT(Soil and water conservation blanket) 3D Geomat are used to provide permanent reinforcement to the grass root matrix for permanent surface erosion protection.

3D GEOMAT(Soil and water conservation blanket)

Erosion Control

3D Geomat are the ideal solution where vegetation requires

permanent assistance protecting the ground from weather and water erosion.

The dense fused strands imitate the role of a root matrix - binding  and trapping soil particles, as well as fertile humus, and reinforcing the soil.


Vegetation Promotion

3D Geomat provide stable conditions for rapid development of vegetation.

The filaments also offer long term support to the developing plant root matrix, assisting them to resist undermining by harsh erosion   forces.


Typical Applications

3D Geomat are recommended on sites were established vegetation alone is unable to resist erosion. Such locations can   include riverbanks, drainage channels and steep slopes.

They are made from extruded polypropylene monofilaments or stitched nets to provide effective soil reinforcement.


Features/Benefits:

●  Long term erosion control

●  Tough, yet flexible

●  Promotes vegetation establishment

●  Permanent protection

●  Allows roots to intertwine and bind to the mat



Technical Parameters

Project

Units

Numerical value

MPEV

Three-dimensional polymer core layer

P P

Porosity

%

≥95%


Polymer density

kg/m3

1140

±50

Unit grammage

g/m2

500

±50

Thickness

mm

17

±3

Tensile strength (transverse)

KN/m

2.2

±0.6

Tensile strength (longitudinal)

KN/m

2

±0.6

Elongation at break (transverse)


40%


Elongation at break (longitudinal)


80%


Roll sizes (m)

M

2*25


Black, UV stabilised,
