Reno Mattress are manufactured from 95% Zn and 5% Al coated double twist hexagonal wire mesh, and are normally supplied 6 x 2 m dimensions with a thickness less than 500mm.
Reno Mattress Description

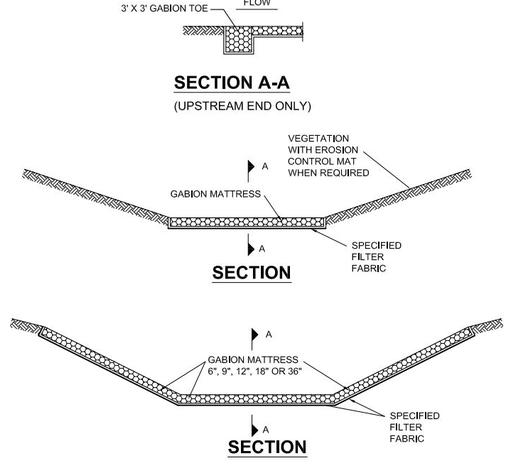

Reno Mattress also known as rock mattresses, are thin, flexible rectangular mesh cages made from double twisted woven wire mesh. The cages are divided into cells and filled with rock to limit movement during high-flow conditions. Because of their flexibility, Reno Mattresses are used mainly for hydraulic applications such as weirs, and for scour protection along riverbanks and embankment stability in channel linings. Mattresses can handle water velocities in excess of 6m/sec for long durations.
Reno Mattresses are manufactured from double twist hexagonal wire mesh with new polymer coating, and are supplied 6m x 2m dimensions with a thickness less than 500mm. Reno Mattresses are filled with stones on site to create a flexible, permeable and monolithic structure for use in river and canal bank protection works as well as erosion control and scour protection of slopes. Hydraulic testing of Reno Mattresses has shown that by containing rock within the cells of the mattresses the resistance to rock movement under high flows is dramatically reduced resulting in the use of smaller and less rock for channel lining works. Reno Mattresses are highly permeable making them well suited for promoting the regeneration of plants along water course and in environmentally sensitive sites.
Reno Mattresses offer a permanent solution for hydraulic applications such as weirs, and for scour protection along riverbanks and embankment stability in channel linings.
Reno Mattresses have several advantages over other methods of bank stabilisation including a double diaphragm that improves rockfill confinement and therefore structural integrity. Because a Reno Mattress is made from one continuous mesh panel there are no joints to weaken the structure and can be filled onsite or prefilled and placed in position. There is also no need to adjust the diaphragm position, as the alignment is straight.
Other advantages include:
Improved stability on soil banks
Protection of soil from erosion and scour
Flexible and versatile to match existing soil profiles
New high performance polymer coating for durability in a wide range of environments
Capable of providing a zone for regeneration of the eco-system
Reno Mattress shall be manufactured with a 60 x 80 mesh type having a nominal mesh opening of 64 x 83 mm (2.5 by 3.25 in.). Tolerances on the mesh opening shall not exceed ± 10% on the nominal dimension D values.
Mesh Sizes（mm） | Reno Mattress dimensions and volumes | Wire diameter | ||||
| L(M) | W(M) | D(M) | Capacity(m³) | Number of diaphragm | ||
| 60*80 80*100 | 4 | 2 | 0.3 | 2.4 | 3 | Mesh Wire: 2.0mm, 2.2mm2.0/3.0mm, 2.2/3.2mm. selvedge wire: 2.7mm, 3.0mm, 2.7/3.7mm, 3.0/4.0mm. lacing wire: 2.0mm, 2.2mm2.0/3.0mm, 2.2/3.2mm |
| 6 | 2 | 0.3 | 3.6 | 5 | ||
| 4 | 2 | 0.23 | 1.84 | 3 | ||
| 6 | 2 | 0.23 | 2.76 | 5 | ||
| 2 | 1 | 0.5 | 1 | 1 | ||
| 3 | 1 | 0.5 | 1.5 | 2 | ||
| 4 | 1 | 0.5 | 2 | 3 | ||
Other specifications can also be customized processing.

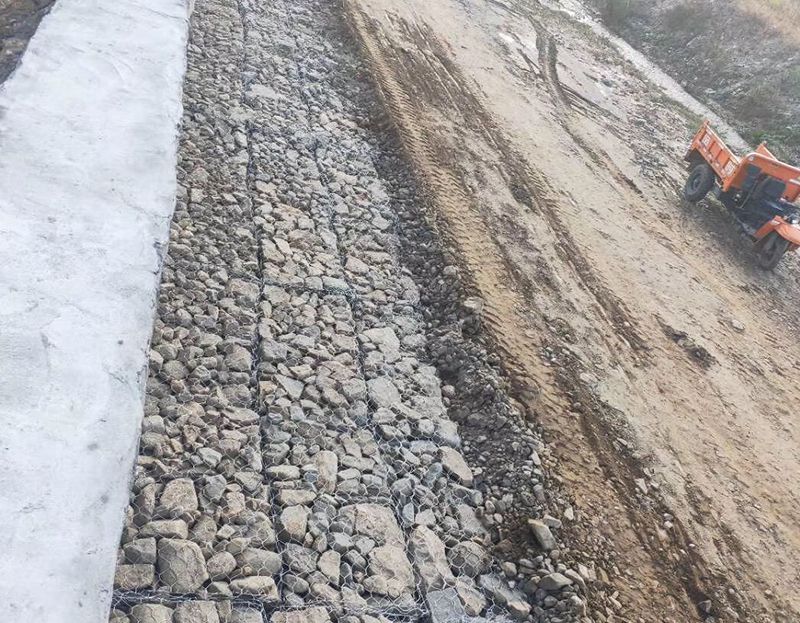

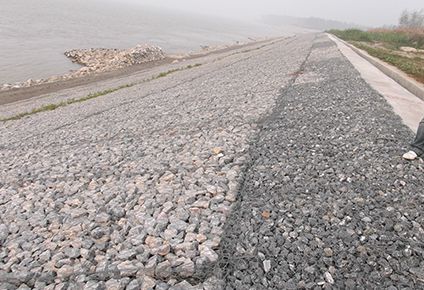

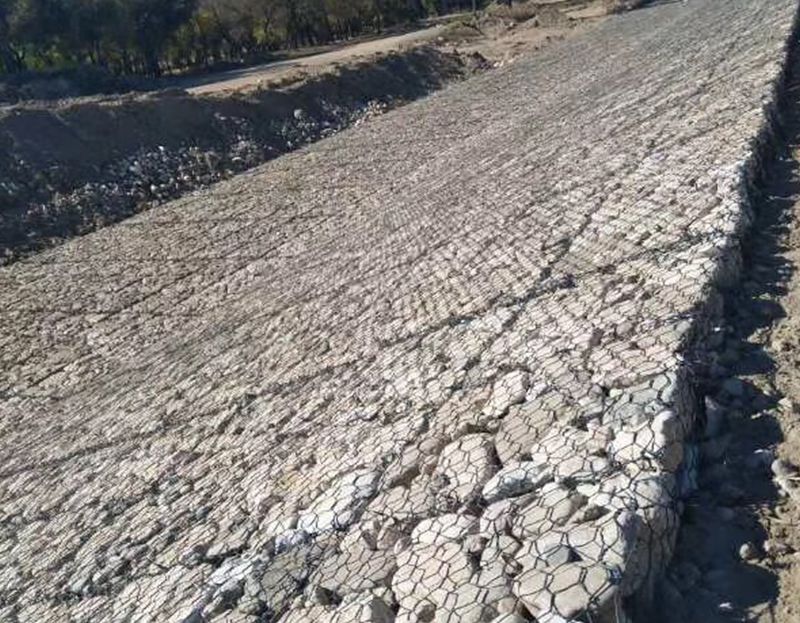

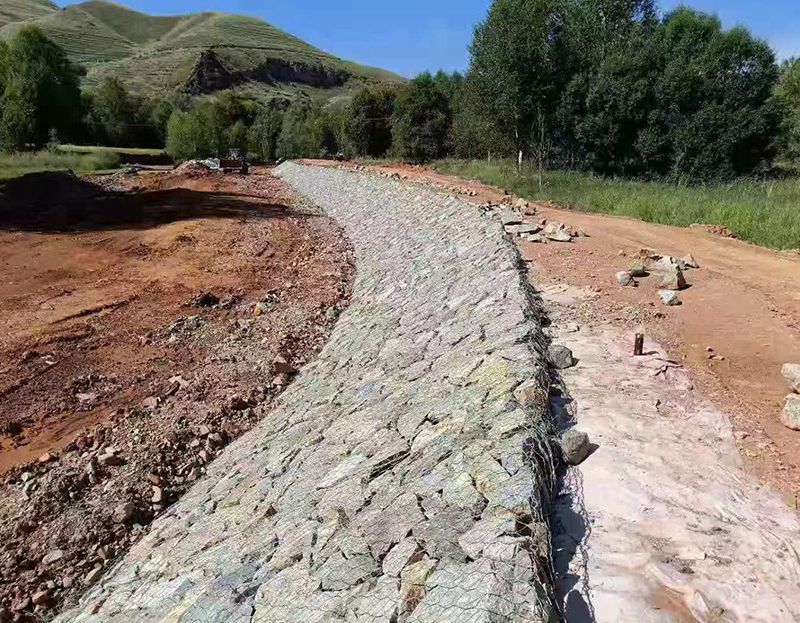

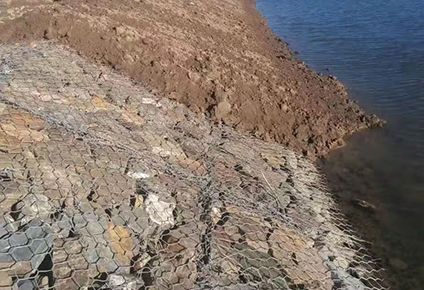

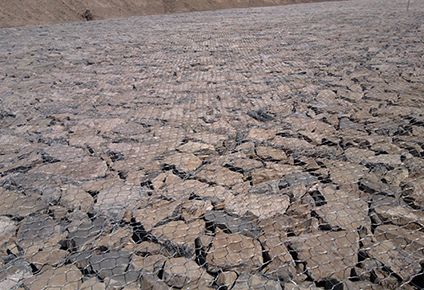

Reno Mattress Applications
Why chose ZHUOMAO Gabions for your projects?
ZHUOMAO is the earliest and largest manufacturer of gabion structures in China.
Member of Chinese Hydraulic Engineering Society(CHES).
Member of China Institute of Water Resources.
Editor unit of China gabion engineering and technology standard.
The only one enterprise recommended by China Ministry of Water Resources in the field of gabion structures.
Strictly implement and meet international standard ASTM STANDARD or BS EN STANDARD and pass ISO & SGS quality certificate system, 3000hs Salt Spray Test.
