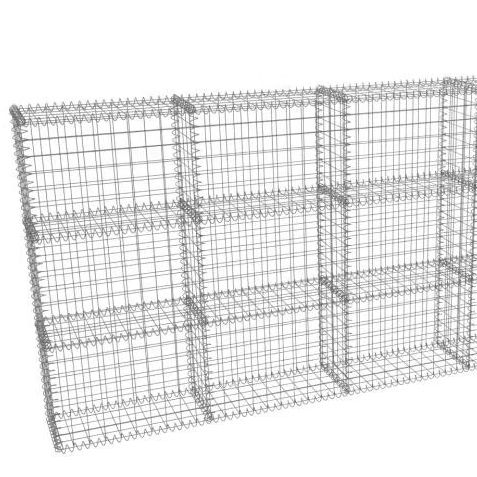

Welded Gabion is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Welded Gabion Description
Welded Mesh Gabions(Landscape Gabion) is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
The wire is also available with a tough, durable pvc coating. Welded gabion could be used for prefilled on site construction which is quick and easy. They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.
A welded wire gabion baskets, from the Italian word for cage, is a strong container filled with inorganic materials such as rock, concrete, sand and soil, and in some construction applications glass rock. These cages are made of site-specific materials including galvanized steel, stainless steel, raw steel, PVC-coated steel and copolymer plastic. They are designed to withstand a variety of weather and site conditions and are known for their incredible versatility.
Weld mesh gabion baskets are useful in civil engineering, military applications, road construction, general landscape elements, foundations, erosion control and construction elements. Some of the fastest growing applications for welded galvanized gabion include construction fencing and veneer structures and for stabilizing shorelines against erosion as they form flexible and permeable structures.
Zhuomao is proud to be one of the few Chinese owned and managed suppliers of welded wire mesh gabions, gabion "reno" mattresses, gabion fencing and geotextile products. We sell welded wire mesh gabion and greenery for a variety of civil construction and
Welded mesh gabion baskets and green wall systems for a variety of civil construction and building products. We are proud to offer the widest range of high quality welded gabion basket, all types and all sizes, including custom gabions.
Durability: welded galvanized gabion baskets are constructed using high-quality, galvanized steel wire that is resistant to corrosion, making them a durable solution for long-term use in harsh environments.
Flexibility: welded wire mesh gabion boxs are flexible and can adapt to various terrains and soil conditions, making them a versatile solution for different applications.
Cost-effectiveness: Welded mesh gabions are relatively inexpensive compared to other retaining wall solutions, making them a cost-effective option for projects with tight budgets.
Easy installation: welding gabion baskets are easy to install and do not require specialized equipment or expertise, reducing installation time and labor costs.
Environmentally friendly: Welded mesh gabions are a sustainable solution that uses locally sourced materials and allows for the natural flow of water, promoting ecological balance.
Aesthetically pleasing: welded wire mesh gabion baskets can be designed to fit into the surrounding landscape, making them an attractive and natural-looking solution for retaining walls and erosion control.

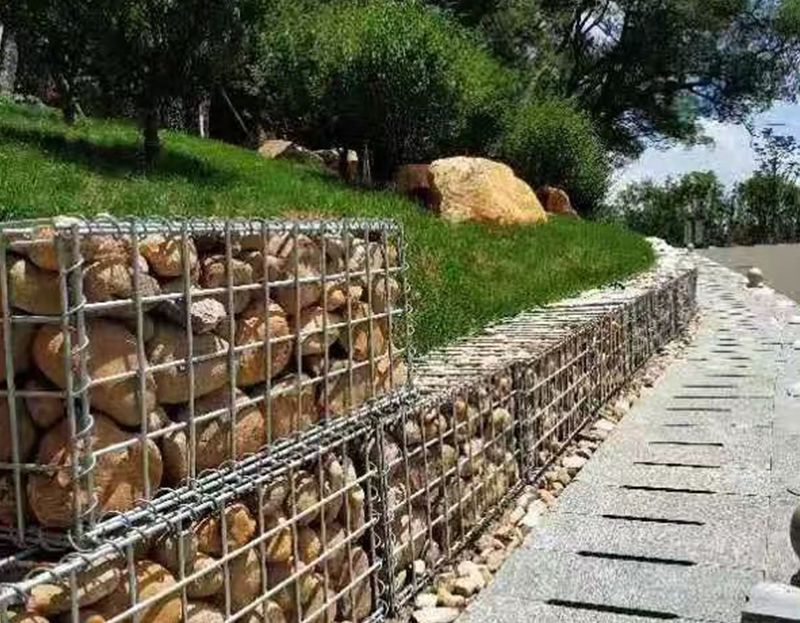

Welded wire mesh gabion walls: Welded mesh gabions are commonly used to construct retaining walls for highways, railways, and other infrastructure projects. They provide a stable and durable solution for soil stabilization and erosion control.
Erosion control: Welded mesh gabions can be used to prevent erosion along riverbanks, shorelines, and other areas prone to soil erosion. They help to slow down the flow of water, preventing soil from washing away and promoting the growth of vegetation.
Flood protection: Welded gabion wire can be used to create flood barriers along rivers, lakes, and other bodies of water. They provide a sturdy and reliable solution for protecting buildings and infrastructure from flooding.
Landscaping: Welded gabion boxes can be used in landscaping to create decorative walls, garden beds, and other features. They provide a natural and attractive look that blends in with the surrounding environment.
Mining and quarrying: Welded mesh gabions can be used in mining and quarrying operations to control soil erosion and stabilize slopes. They provide a cost-effective and environmentally friendly solution for managing waste rock and other materials.
| Mesh Sizes（mm） | Welede gabion dimensions and volumes | Wire Diameter | ||||
| L(M) | W(M) | D(M) | Capacity(m³) | Number of diaphragm | ||
50*50 75*75 50*100 100*100 | 1 | 0.5 | 0.3 | 0.15 | 0 | Mesh Wire: 3.0mm, 3.2mm, 3.4mm, 3.8mm, 4.0mm |
| 1 | 0.5 | 0.5 | 0.25 | 0 | ||
| 2 | 1 | 0.5 | 1 | 1 | ||
| 1 | 1 | 1 | 1 | 0 | ||
| 2 | 1 | 1 | 2 | 1 | ||
| 4 | 2 | 0.3 | 2.4 | 3 | ||
| 6 | 2 | 0.2 | 2.4 | 5 | ||
Other specifications can also be customized processing.
Advantage
Permeable
Gabion walls are known for their permeability. This means that they require less drainage and, in some cases, no additional drainage behind the wall surface because of less hydrostatic pressure build-up.
Sustainable
Gabion walls are sustainable because they are filled with minimally processed stone, a natural resource that can be sourced locally. If needed and with proper maintenance, vegetation can grow, so gabion walls can be integrated into the environment. In addition, in terms of CO2 emissions, gabion retaining walls have a lower carbon footprint than conventional concrete retaining walls of the same size.
Durable
Our gabion walls are designed to be durable because they are flexible and can move with the earth. Unlike hard materials like concrete that crack over time, gabions can move and settle with the natural movements of the earth.
Explore all your options with our wide range of standard and custom China-made gabion products. Choose from a variety of materials and finishes, including galvanized steel, galvanized steel with PVC coating, stainless steel and plastic copolymers.
How to install welded Welded Gabion?

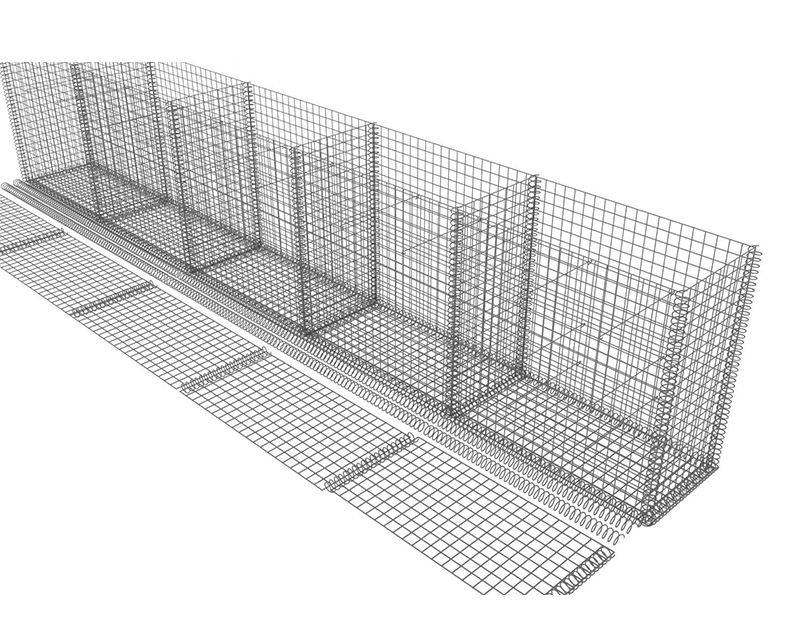

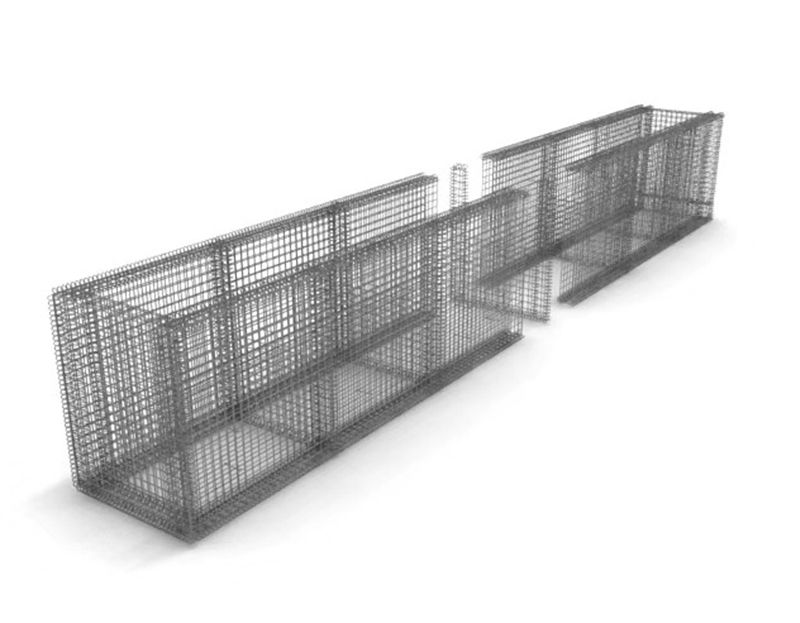

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.

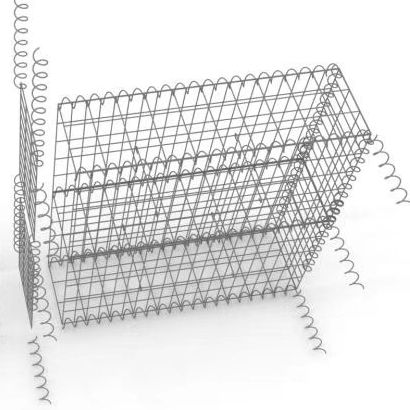

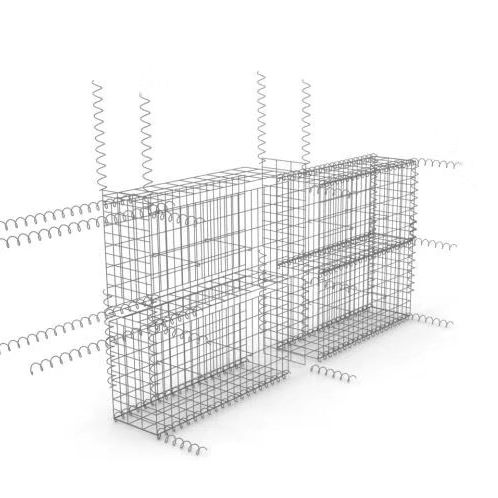

Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Welded gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
Need engineering assistance? Contact us!
