3D Composite Erosion Control Geomat

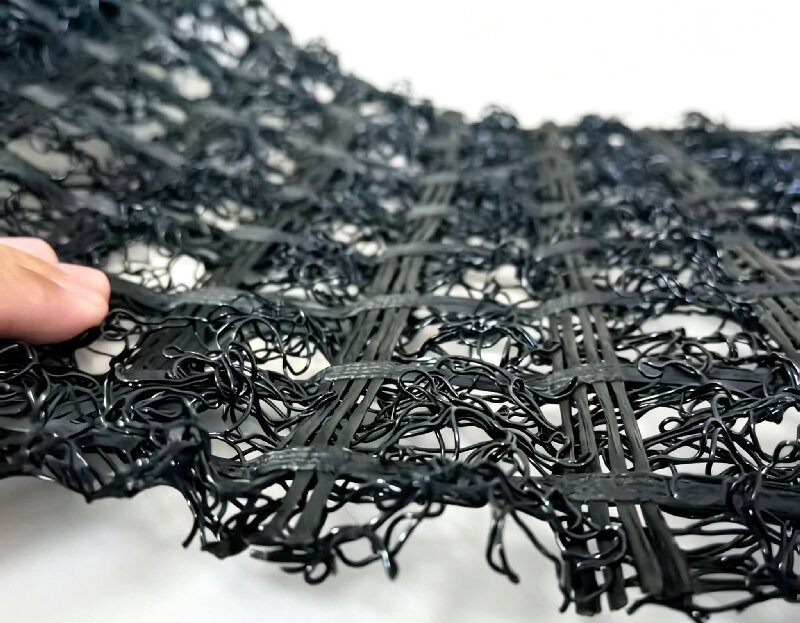

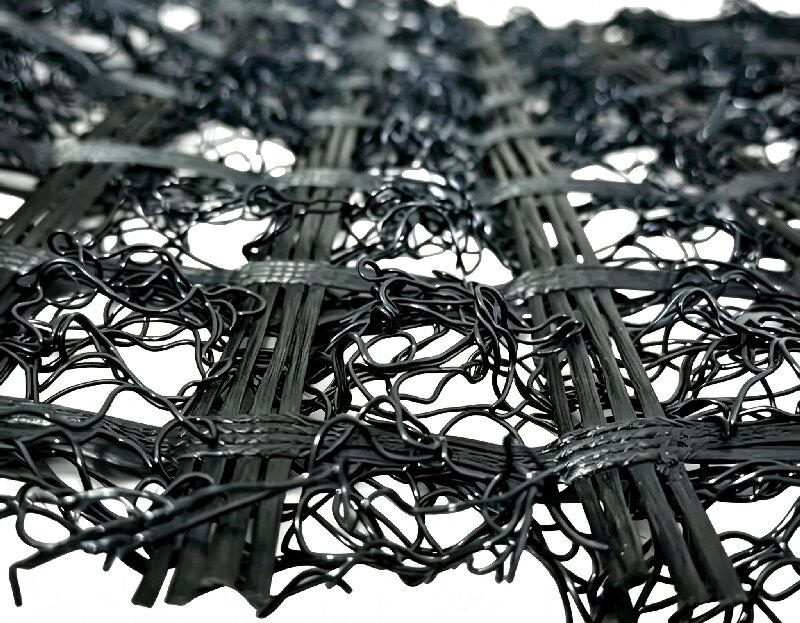

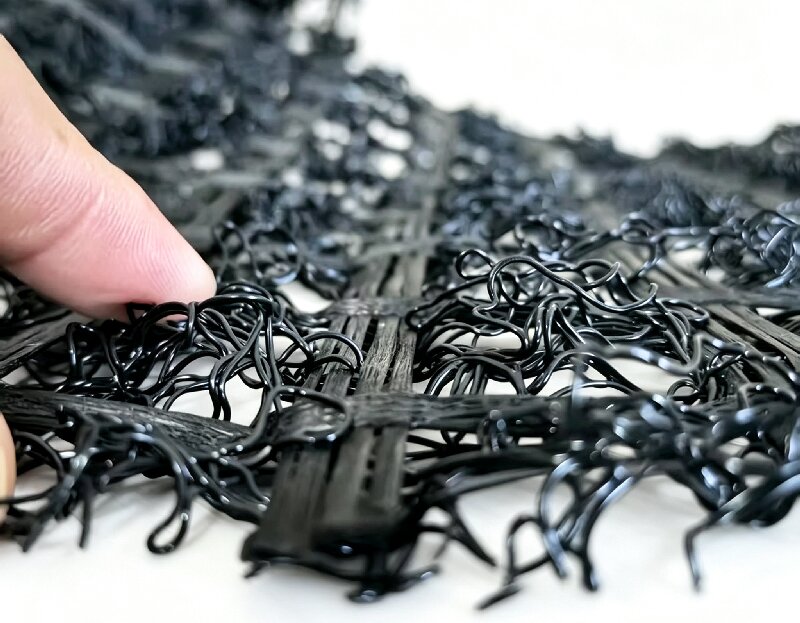

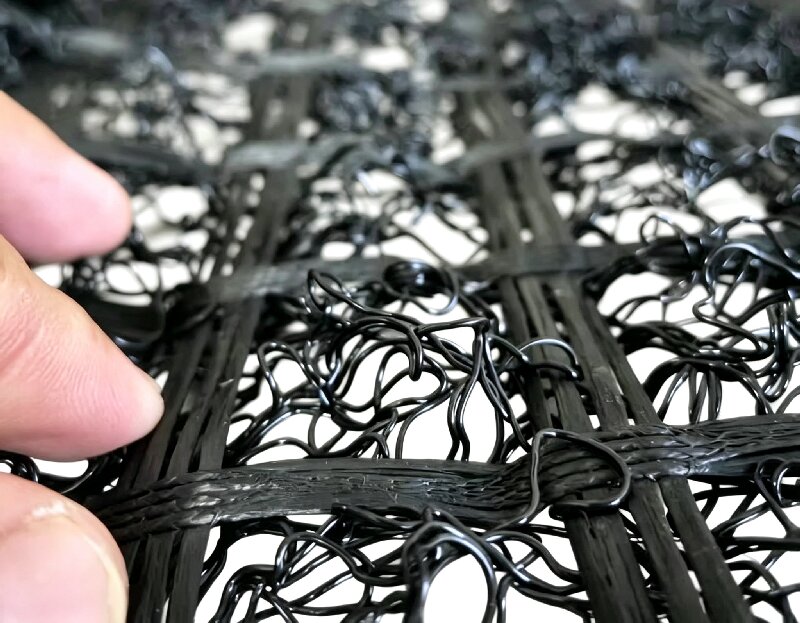

This is a geosynthetic material known as 3D Composite Erosion Control Geomat. It is manufactured from black polypropylene (PP) monofilaments thermally bonded into a three-dimensional reticulated structure, typically integrated with reinforcement grids. The product is primarily used for steep slope protection

Inquire Now Next Product

3D Composite Erosion Control Geomat APPLICATION DESCRIPTION PRODUCT ADVANTAGES

This is a geosynthetic material known as 3D Composite Erosion Control Geomat.

It is manufactured from black polypropylene (PP) monofilaments thermally bonded into a three-dimensional reticulated structure, typically integrated with reinforcement grids. The product is primarily used for steep slope protection, landfill cover systems, and riverbank erosion control, effectively stabilizing soil and promoting vegetation establishment.

APPLICATION DESCRIPTION

The erosion control composite geosynthetic is a multi-layer geocomposite consisting of a 3D erosion control mat (serving as a soil anchoring component) integrated with a high-tensile-strength, low-elongation polyester reinforcement grid.

Featuring a three-dimensional open-porous structure, the erosion control material firmly secures the topsoil on slopes and increases the friction angle between the soil layer and other geosynthetics, including geomembranes, drainage geocomposites, and bentonite geosynthetic clay liners.

The material counteracts tensile forces, enabling construction on steep slopes and preventing tearing or damage to underlying geosynthetic layers.

3D Composite Erosion Control Geomat

PRODUCT ADVANTAGES

Long-term Slope Reinforcement
Counteracts tensile forces on steep slopes and enhances the mechanical performance of waterproofing and drainage systems
Fast and Easy Installation
Wide roll format allows for rapid, efficient deployment over large surface areas
Superior Slip Resistance
Soil-interlocking structure provides a high friction angle with the sub-base, significantly reducing the risk of slippage
Cost-effective Solution
Excellent value for money with favorable overall project economics
Chemically Neutral
Chemically inert and compatible with various soil conditions

Tags: 3D Composite Erosion Control Geomat, polyester reinforcement grid, geomembrane, polypropylene (PP) monofilaments thermally bonded, 3D GEOMAT , 3D mat
