A high-tech enterprise specializing in the research and development and manufacturing of three-directional plastic geogrids.
Triaxial geogrid Characteristics

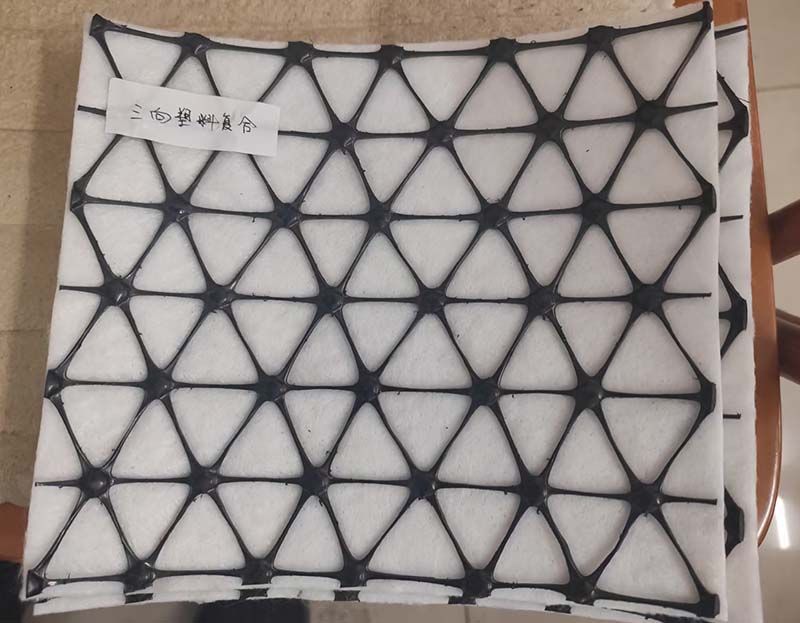

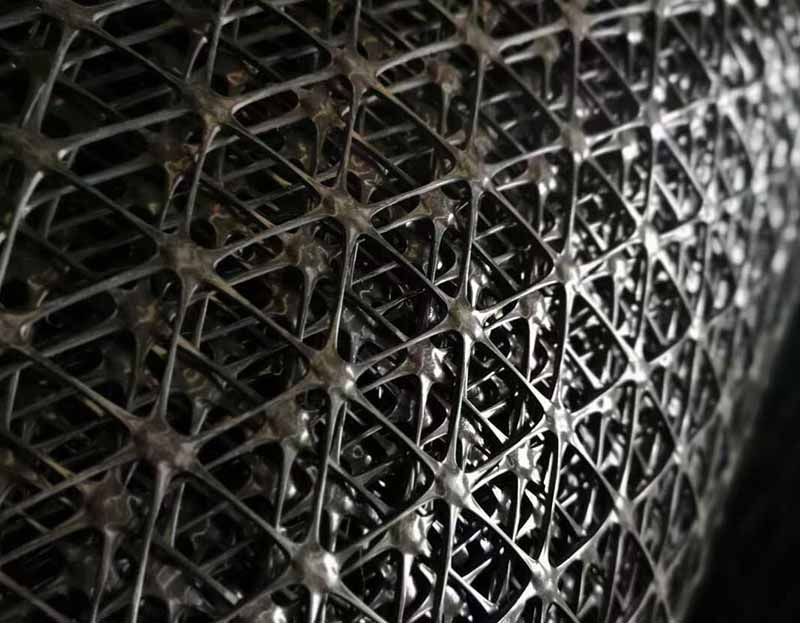

Triaxial geogrid is a type of geosynthetic material used in civil engineering and construction. It is made from a network of plastic or steel fibers that are oriented in three perpendicular directions, forming a grid pattern. Here are some key characteristics and uses of triaxial geogrid:
- Structure: The fibers are typically woven or knitted to create a strong, durable grid structure.
- Materials: Made from polypropylene (PP), polyethylene (PE), high-density polyethylene (HDPE), or steel.
- Strength: Triaxial geogrids provide high tensile strength in both the longitudinal and transverse directions.
- Flexibility: They are flexible, allowing them to accommodate movement and deformation.
- Weight: They are lightweight compared to traditional construction materials.
| Triaxial Geogrid Model | ||||||
| Specification and model | TX130S | TX150 | TX160 | TX170 | TX180 | TX190L |
| Length | 50M-75M | |||||
| Width | 3.8M-4M | |||||
The average quality control tensile modulus at 2% strain (KN/m)≧ | 140 | 185 | 225 | 295 | 355 | 300 |
| The ratio of radial tensile modulus at 2% strain ≧ | 0.6 | 0.65 | 0.65 | 0.65 | 0.65 | 0.6 |
Triaxial geogrid Applications
- Roads and pavements: To stabilize roadbeds and pavements, enhance bearing capacity, and reduce differential settlements.
- Soil stabilization: In embankments, slopes, and other soil structures to improve stability and reduce erosion.
- Retaining walls: To reinforce the structure of retaining walls and increase their load-bearing capacity.
- Landfills: For lining and lining reinforcement to prevent leakage and increase the lifespan of landfills.
- Foundation reinforcement: To reinforce foundations and improve their load-bearing capacity inWeak foundation or uneven foundation。
- Construction of dams: As part of the dam lining system to enhance the structure's integrity and reduce the likelihood of seepage.
Triaxial geogrid Benefits
- Reduced construction time: Triaxial geogrids can be quickly installed, reducing the overall construction time.
- Cost-effectiveness: They are cost-effective solutions that can replace traditional reinforcement methods in many cases.
- Environmental benefits: They are lightweight, which can reduce transportation costs and environmental impact.

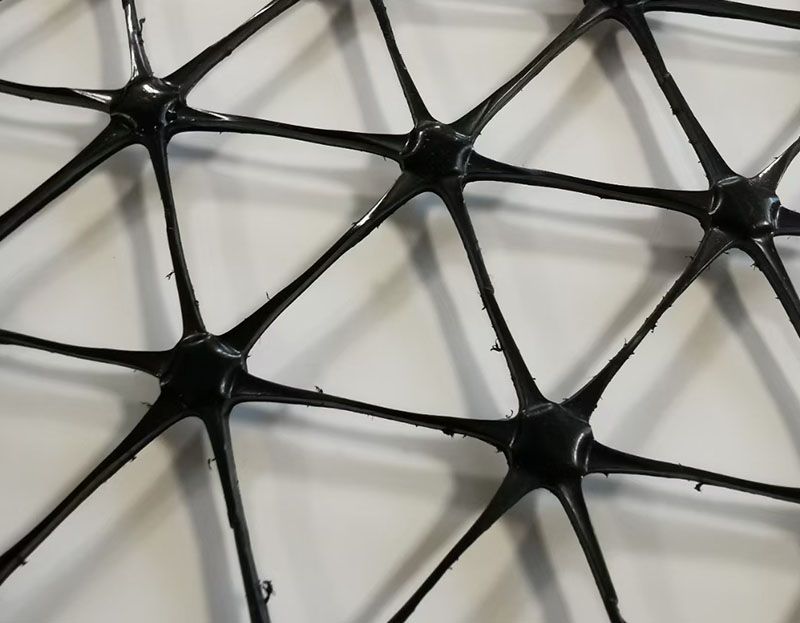

✅ Extraordinarily High Node Strength: The triangular structure disperses loads, increasing tensile strength by over 30%.
✅ Outstanding Deformation Control: Evenly distributes stress, effectively suppressing subgrade settlement and pavement cracking.
✅ All-Angle Stability: Uniform force distribution at 360°, suitable for complex geological conditions.
✅ Long-Term Durability: Resistant to UV rays and chemical corrosion, with a service life exceeding 50 years.
Technical strength
- Certified with both ISO 9001 and ISO 14001
- Jointly established a geotechnical materials research and development center with Hebei University
Application Fields
• Subgrade reinforcement: Reduces uneven settlement and enhances bearing capacity (successfully applied in [a certain expressway project]).
• Slope protection: Replacing traditional stone masonry, construction efficiency is increased by 40% (Case: [A certain mine ecological restoration project]).
• Soft soil foundation treatment: Working in synergy with the soil to reduce project costs.
Cooperative Clients:
• Large-scale engineering units such as China Communications Construction Company, China Railway Group, and provincial transportation design institutes.
- Reconstruction and expansion project of Beijing-Guangzhou-Hong Kong Expressway
- Intercity rail project in the Guangdong-Hong Kong-Macao Greater Bay Area
- Road construction project aided by Brazil
Service Philosophy
Adhering to the mission of "Strengthening the foundation with technology and building the future with quality", we offer:
24-hour technical response
Full-cycle quality tracking service
