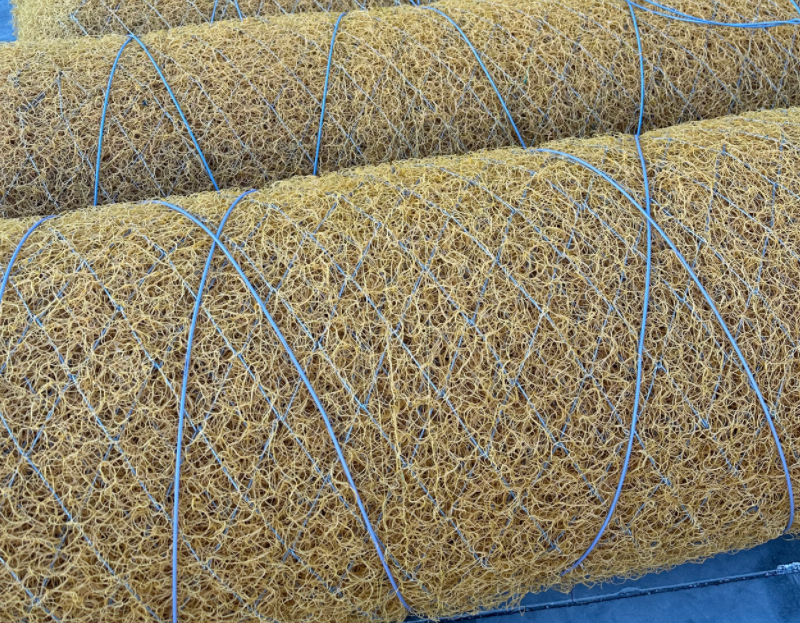

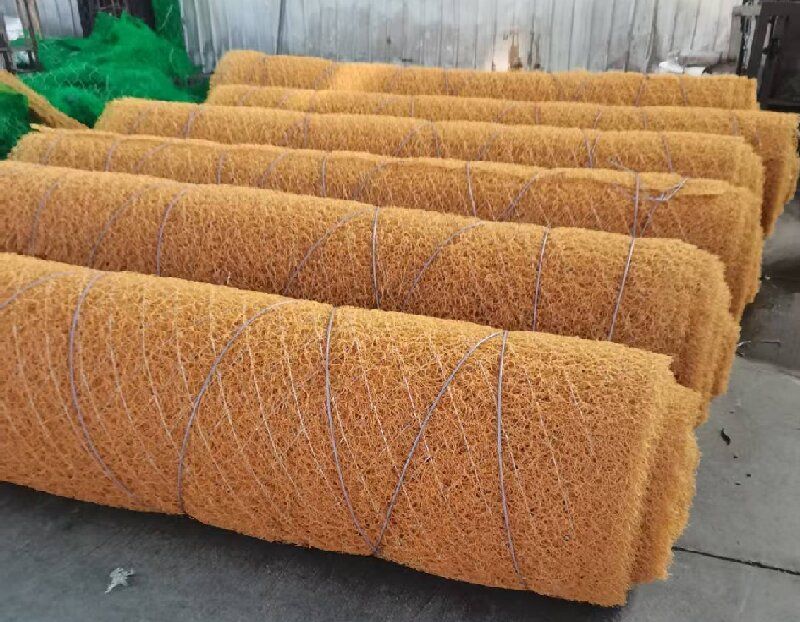

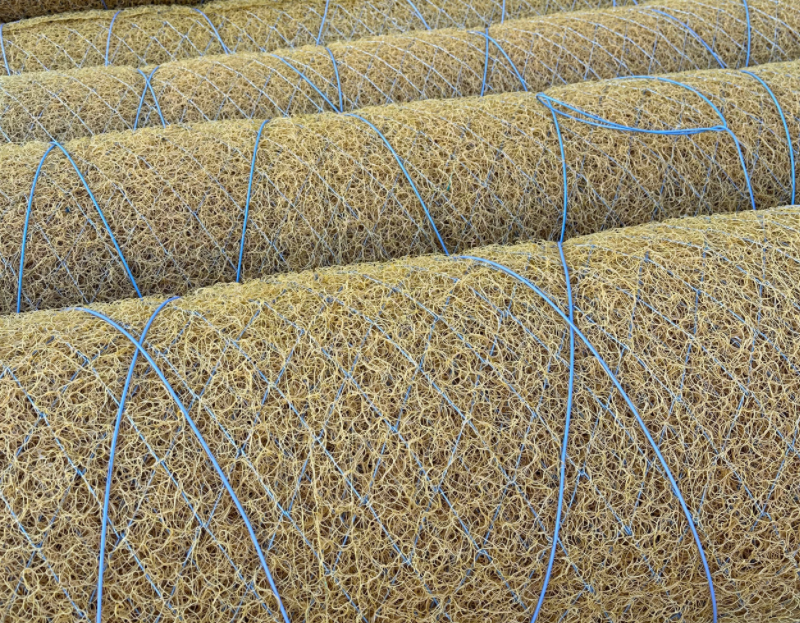

TECCOMAT is a reinforced geomat made from a polymeric three-dimensional matrix extruded onto a Tecco steel wire woven mesh. The reinforcing Tecco steel wire mesh has mechanical characteristics exceeding those in EN 10223-3. The wire is protected with GalMac(Zn95%-AI5%) galvanising in accordance with EN 10244-2, Class A.
TECCOMAT
TECCOMAT is a reinforced geomat made from a polymeric three-dimensional matrix extruded onto a Tecco steel wire woven mesh. The reinforcing Tecco steel wire mesh has mechanical characteristics exceeding those in EN 10223-3. The wire is protected with GalMac(Zn95%-AI5%) galvanising in accordance with EN 10244-2, Class A.
TECHNICAL DATA SHEET
| TECCOMAT | |||
| Polymer | POLYPROPYLENE | ||
| Mass per unit area (EN ISO 9864) ±10 % | g/m² | 450 | |
| Melting point | °C | 150 | |
| Polymer Density | kg/m³ | 900 | |
| UV Resistance | STABILIZED | ||
| Reinforcement | |||
| Type | wire mesh heavily GalMac coated | ||
| Mesh type | 81x142 | 81x142 | |
| Wire diameter (int./ext.) | mm | 2.0 | 3.0 |
| Tensile strength | MPa | ≧1770 | |
