Crimped wire mesh
Crimped wire mesh
Crimped wire mesh
Crimped wire mesh
Crimped wire mesh

Crimped wire mesh

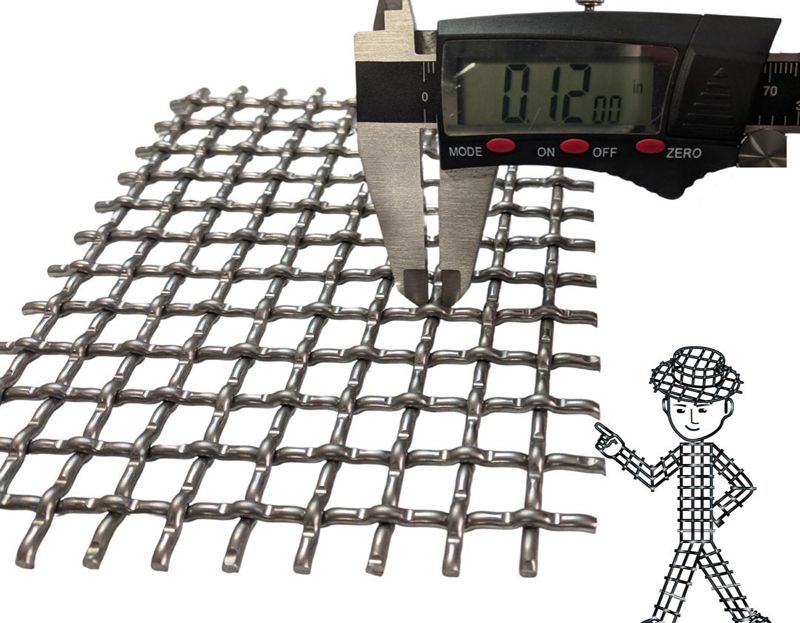

Pre-crimped wire mesh is made of wire diameters ranging from 1.5mm to 6 mm


Crimped Wire Mesh

crimped wire mesh is a type of woven wire mesh that is made by crimping the wires in two directions, creating a tight and sturdy weave. This type of wire mesh is often used in applications where strength and durability are important, such as in the construction of fences, screens, and industrial equipment.

The double crimping process involves crimping the wires both horizontally and vertically at the intersection points, creating a tighter weave than single crimped wire mesh. This makes the wire mesh more resistant to deformation and stretching, and gives it a higher load-bearing capacity.

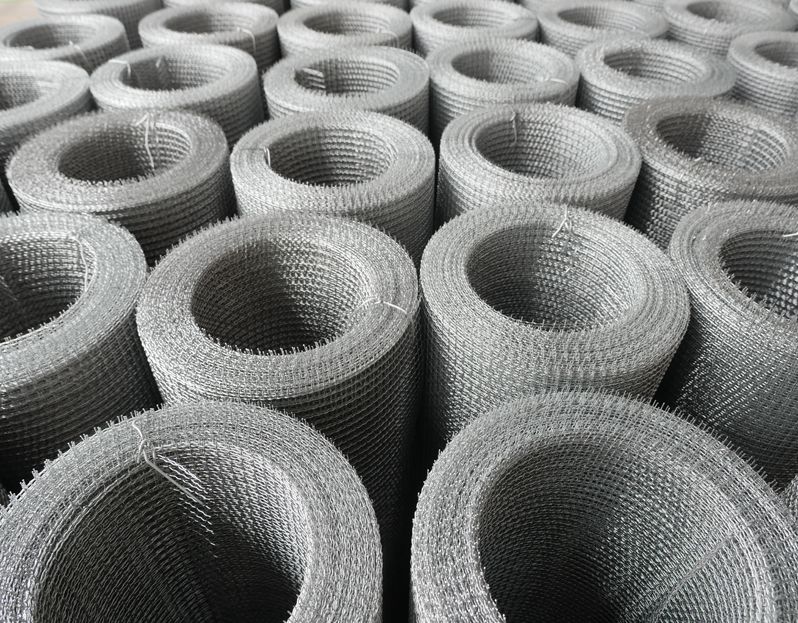

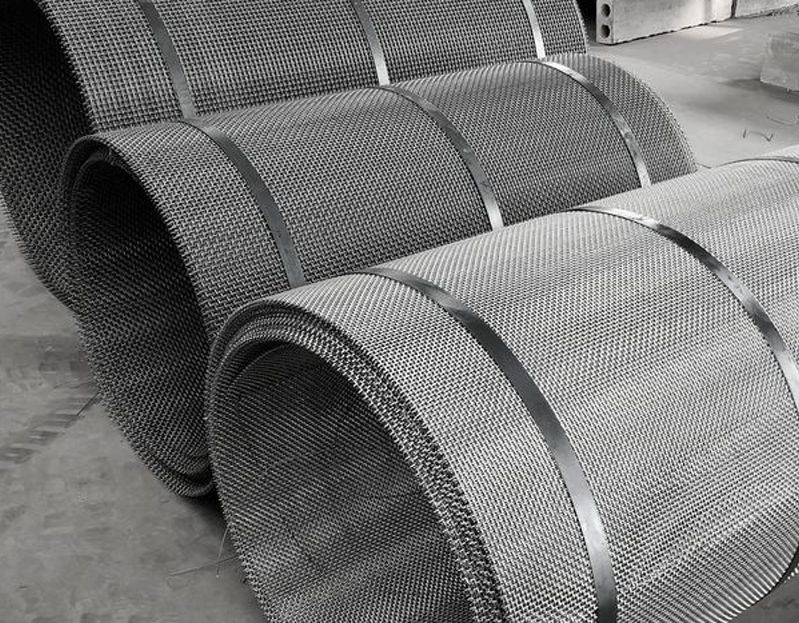

crimped wire mesh is available in a variety of materials, including stainless steel, galvanized steel, and brass, and can be woven into a range of mesh sizes and wire diameters to suit specific applications. It is also available in flat panels or rolls, making it easy to install in a variety of settings.

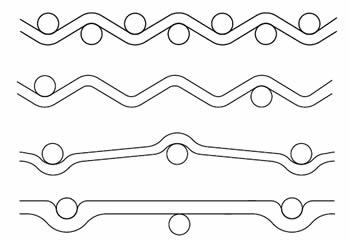

Woven Wire Cloth Crimp Styles

Flat top crimped

Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen. It is widely used in the vibrating screen.

Lock crimped

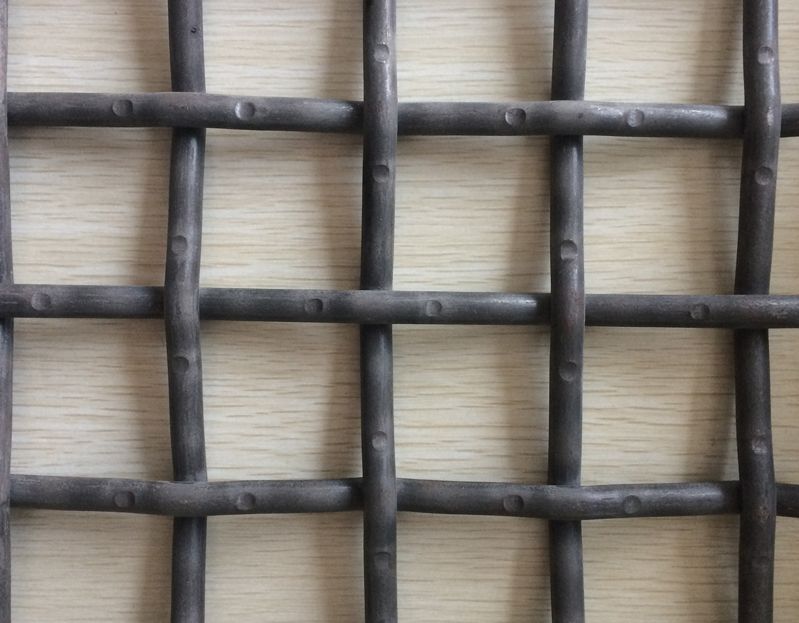

Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.

Double crimped

Double crimped is also called plain weave. Different from the intermediate crimped, both the warp wire and weft wire are woven directly by straight wire. We can get a rigid construction through evenly crimp in warp and weft wire. The wires are under crimped and sprung together thus giving a tight mesh. This is used mainly with lighter wires to ensure tension in a light screen.

Intermediate crimped

Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped.

Crimped wire mesh


Crimped Wire Mesh Specifications

Crimped Wire Mesh Materials: Stainless Steel Crimped Wire Mesh, spring steel wire, manganese steel wire, Galvanized Crimped Wire Mesh, Copper Crimped Wire Mesh, Brass Crimped Wire Mesh, Aluminum Crimped Wire Mesh.

Weaving method: double crimped, flat top crimped, intermediate crimped and lock crimped.

Mesh type: square mesh and rectangle mesh.

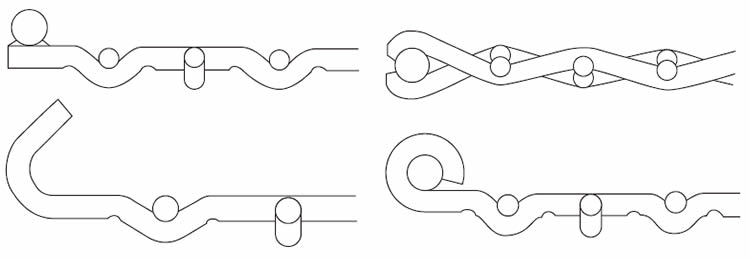

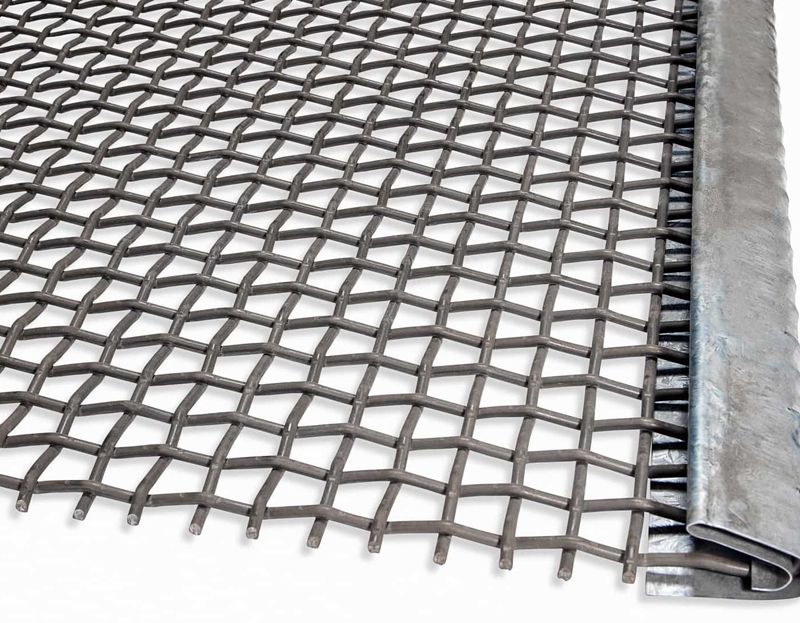

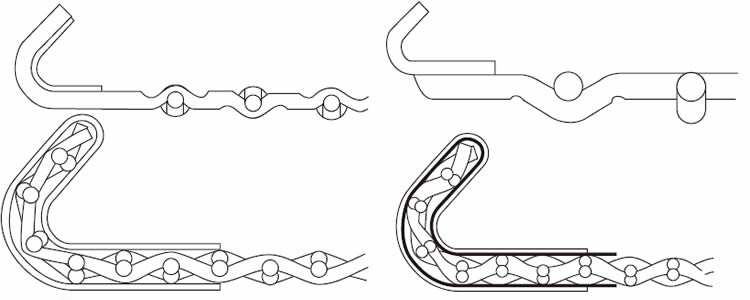

Edge type: plain, bent and reinforced hooked.

Light type crimped woven wire mesh

Mesh size: 2 mesh - 22 mesh.

Width: 1m - 2m.

Length: 30m.

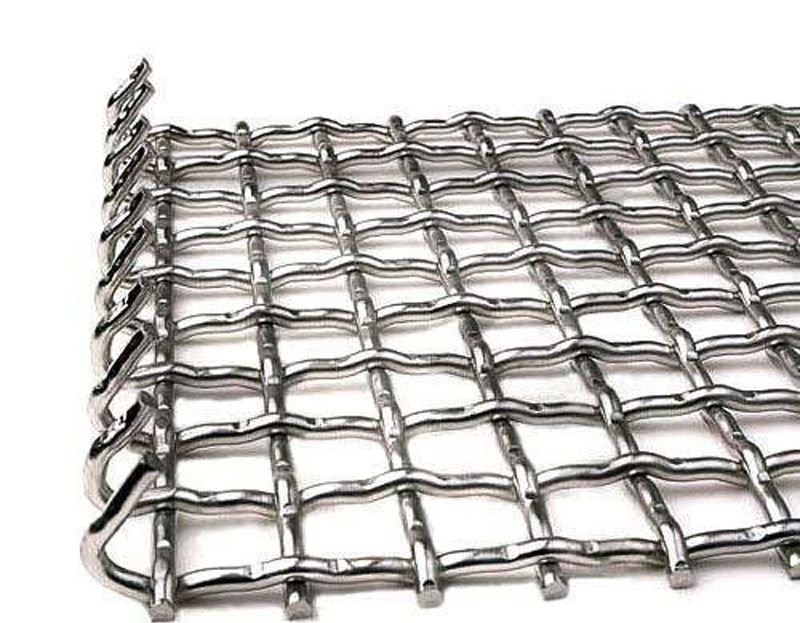

Heavy duty crimped wire mesh panel

Mesh size: 2mm - 30mm.

Wire diameter: 1mm - 6mm.

Width: 1m.

Length: 2m.

Rectangle pig raising mesh

Material: carbon steel wire, galvanized steel wire and stainless steel wire.

Wire diameter: 3.8mm - 8mm.

Opening size: 10mm × 50mm, 11mm × 50mm, 8mm × 50mm

Mesh width: max. 2m.

Barbecue grill mesh

Wire diameter: 0.4mm - 3.0mm.

Aperture size: 1mm - 15mm.

Mesh diameter: 230mm, 240mm, 260mm, 270mm, 280mm, 300mm, 350mm, 400mm, 500mm.

Crimped wire mesh

Crimped wire mesh

Configuration Characteristic

Benefits of Crimped Wire Mesh

Durability: Double crimped wire mesh is highly durable and can withstand heavy loads, making it suitable for industrial and construction applications.

Strength: The crimped pattern of the wires creates a strong mesh structure that can resist impact and deformation.

Stability: The double crimping process ensures that the wires are tightly woven together, providing stability and rigidity to the mesh.

Corrosion resistance: The use of stainless steel or other corrosion-resistant materials ensures that double crimped wire mesh is resistant to rust and other forms of corrosion.

Versatility: Double crimped wire mesh can be used for a wide range of applications, including filtration, screening, and security.

Customization: Double crimped wire mesh can be customized to meet specific requirements, such as mesh size, wire diameter, and material type.

Easy installation: Double crimped wire mesh can be easily cut and installed to fit any size or shape, making it ideal for a variety of applications.

Crimped Wire Mesh Applications

Filtration: It is used in the filtration of liquids and gases, such as water treatment, oil and gas filtration, and air filtration.

Screening: It is used as a screening material in the mining, quarrying, and construction industries for sizing and separating aggregate, sand, gravel, and other materials.

Security: It is used in security fencing and barriers for perimeter protection, access control, and crowd control.

Decoration: It is used in architectural and decorative applications, such as interior design, furniture, and art installations.

Agriculture: It is used as a protective barrier in farming and agriculture, such as bird cages, animal enclosures, and plant protection.

Automotive: It is used in the automotive industry for engine and exhaust system components, as well as in the manufacturing of car grilles and protective screens.

Aerospace: It is used in the aerospace industry for aircraft engine components, as well as in the manufacturing of spacecraft components.

How to choose Crimped Wire Mesh

Choosing the right crimped wire mesh depends on several factors such as the Crimped Wire Mesh Uses, the Crimped Wire Mesh Strength and rimped Wire Mesh Corrosion Resistance, the Crimped Wire Mesh Sizes and opening, and the material of the wire. Here are some considerations to keep in mind when choosing a crimped wire mesh:

Application: Consider the specific use of the crimped wire mesh. Will it be used for screening, filtering, sorting, or sizing? The application will dictate the required strength, durability, and mesh size.

Material: The choice of material for the wire will depend on the application and the environment it will be used in. Stainless steel is a popular choice due to its strength, durability, and resistance to corrosion, while other materials like galvanized steel, copper, and brass are also used in specific applications.

Mesh size and opening: The size of the mesh opening will determine the size of particles that can pass through the wire mesh. The mesh size can range from very fine to very coarse, depending on the application.

Crimped Wire Mesh Weaving Patterns: Crimped wire mesh can be woven in different patterns, such as plain weave, twill weave, and Dutch weave Crimped Wire Mesh. The choice of weave pattern will depend on the application and the required strength and durability.

Quality: Choose a reputable supplier who can provide high-quality crimped wire mesh that meets your specifications and requirements. Quality crimped wire mesh will ensure that it performs effectively and lasts longer.
