Reinforced 3D Geomat for Slope Protection and Erosion Control

1. Structure (Two-Layer Composite)

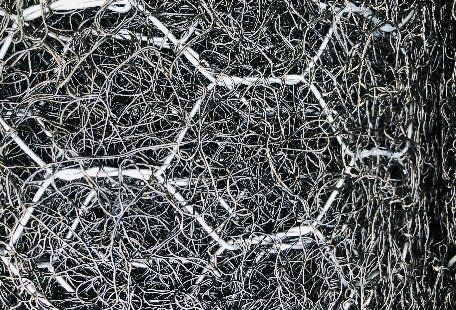

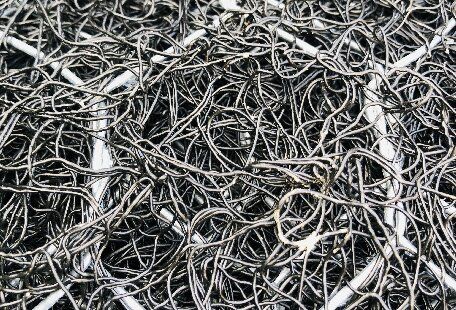

1.1 Surface Three-Dimensional Geomat

• Material: UV-resistant PP monofilament, thermally bonded, with porosity > 90%.

• Structure: Flexible, fluffy, three-dimensional open structure, suitable for soil filling and plant rooting.

1.2 Internal Reinforcement Layer

• Mainstream: Twisted hexagonal steel wire mesh (mild steel / galvanized / Galfan coated / PVC coated), complying with EN 10223-3.

• Alternative: High-strength polymer geogrid for corrosion-resistant environments.

• Function: Provides high tensile strength and significantly improves the overall stability of slopes.

2. Core Functions & Principles

• Initial erosion control: The geomat directly resists rain erosion and runoff impact to prevent topsoil loss.

• Soil fixation & grass planting: The pores are filled with nutrient soil; plant roots penetrate the geomat and reinforcement layer to form an integrated "mesh–soil–root" system for long-term slope stabilization.

• Reinforcement & stability: Steel wire mesh / geogrid restricts soil deformation and disperses stress, suitable for high-risk scenarios such as steep slopes (≥45°), high-velocity channels, and subgrade slopes.

3. Main Applications

• Subgrade slope protection for highways and railways.

• Lining and bank erosion control of rivers and channels.

• Municipal landscape slopes and ecological restoration.

• Mine greening and waste dump stabilization.

• Coastal embankment and tidal zone protection.

4. Key Advantages (vs. MACMAT)

• ✅ Higher strength: Tensile strength increased by 5–10 times after reinforcement, with strong anti-slip and anti-landslide performance.

• ✅ Eco-friendly: High opening rate without blocking vegetation, natural greening after construction, no "hard protection" trace.

• ✅ Durable & anti-aging: UV-resistant and corrosion-resistant PP material, design service life ≥ 50 years.

• ✅ Easy construction: Rolled laying, convenient fixing with anchor nails and overlapping, short construction period and low cost.

5. Common Specifications (For Reference)

• Geomat thickness: 10 / 12 / 15 mm.

• Steel wire mesh size: 60×80 mm, 80×100 mm; wire diameter: 2.0–2.7 mm.

• Roll length: 25 / 50 m; width: 2.0 m.
